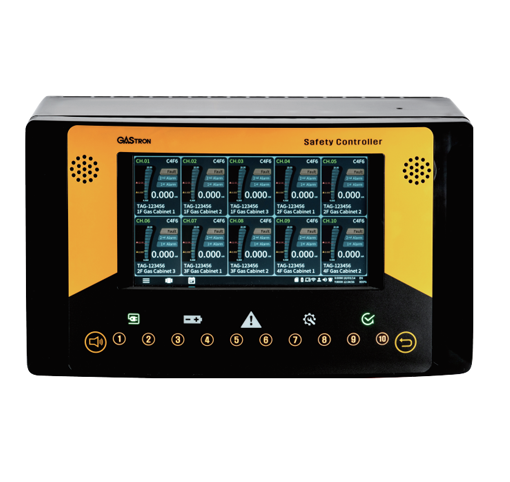

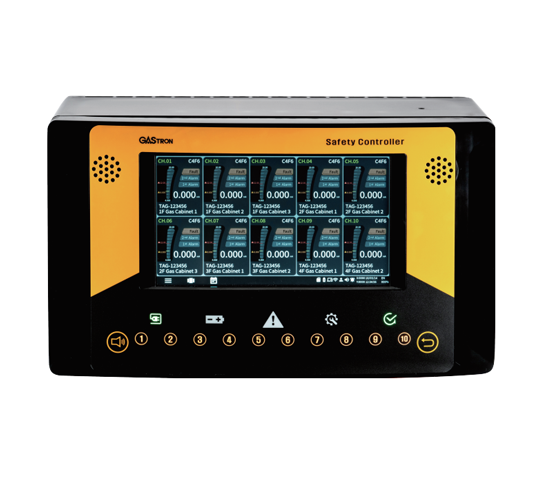

Safety Controller / ASC-100

Model : ASC-100
Channel : 10 Channel (Base Unit), 10 Channel (Expansion Unit)
Comm. : 4-20mA, RS-485, Relay
Approval : CEEMC, CELVD

Up to 10 channels of gas detector monitoring (4 ~ 20mA detection and 24V supply)

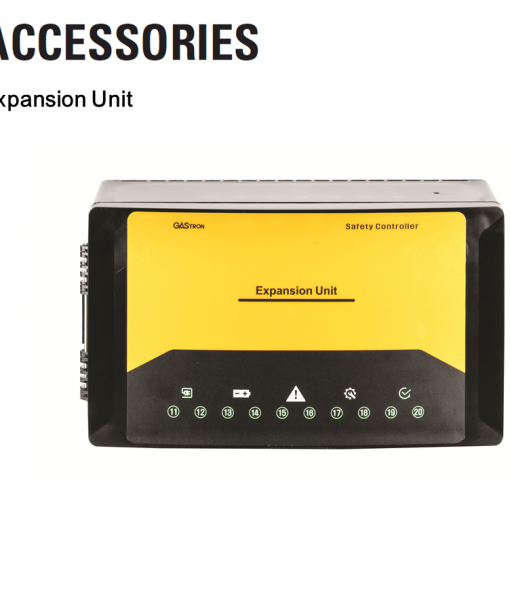

Expansion of additional 10 channels when using extension unit (monitoring up to 20 channels)\
Relay, 4 ~ 20mA output function Individual module configuration
10.1″ touch screen with wide viewing angle and multi-language support
Intuitive user interface and alarm system configuration
Detector position and alarm status can be displayed using map monitoring mode
Detection channel log function and various event storage function
Material safety data sheet (MSDS) viewer for sensing gas
High output buzzer and user voice alarm function according to alarm occurrence
Various external interfaces such as TCP / IP and MODBUS
Provides earthquake alarm detection function (intensity 3 ~ 7)
Robust case construction and IP65 waterproof / dustproof
