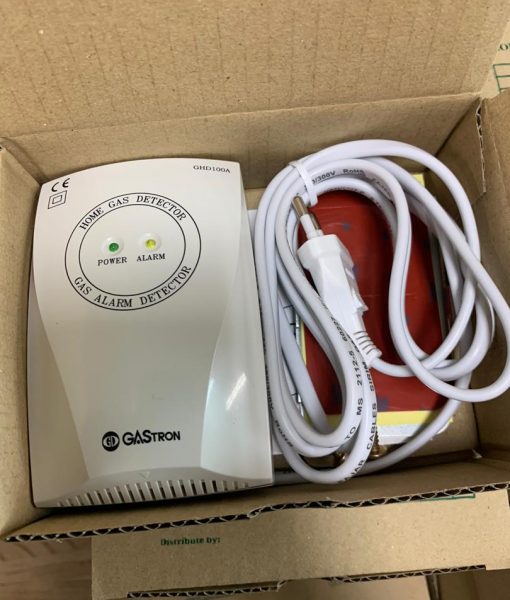

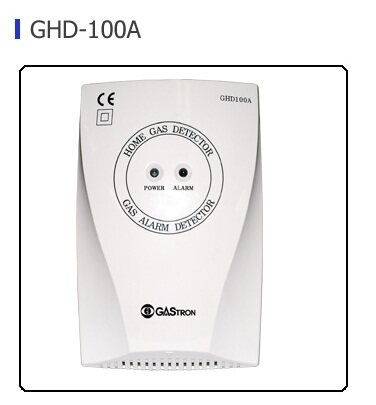

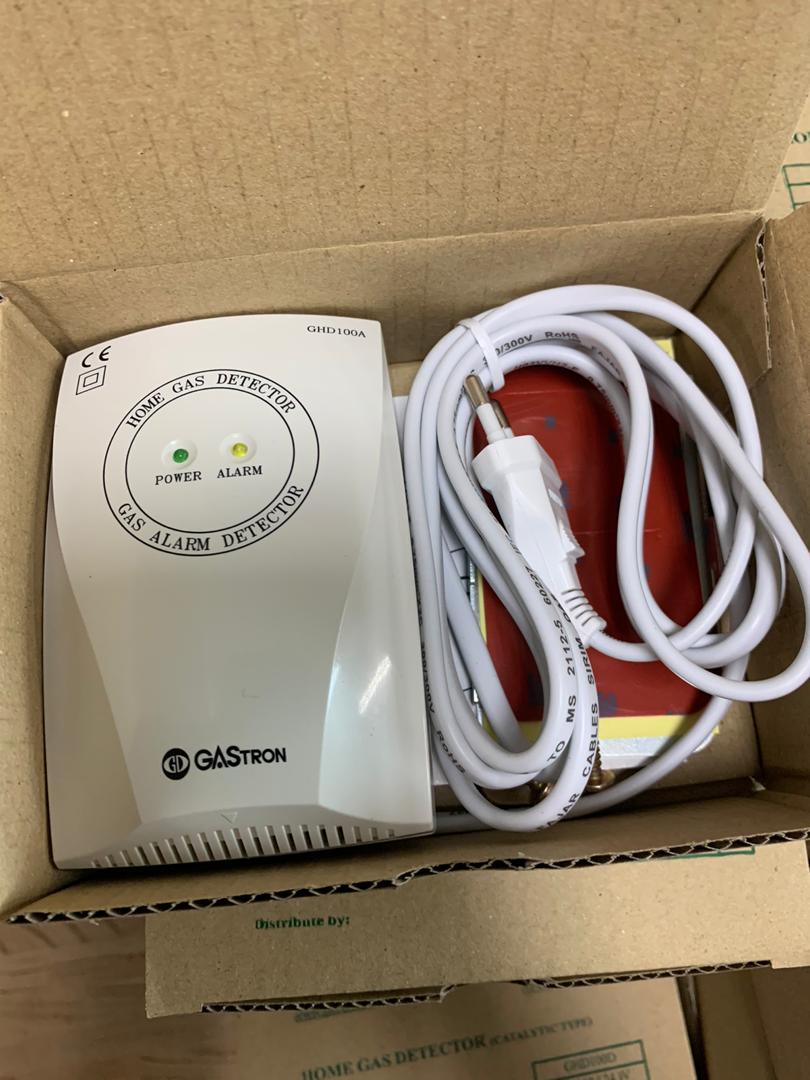

Gastron Home Gas Detector – GHD100A

Model : GHD-100A
Gas : Combustible(LPG/LNG)
Comm. : Relay / 12VDC
Approval : CE / ST

Information :

• GHD100A Description Detect gas leak below explosion limit with built-in visible and audible alarms.
• Generates on/off display or dry relay contact for infer facing with gas monitoring system (With Relay model only). Approved by CE.

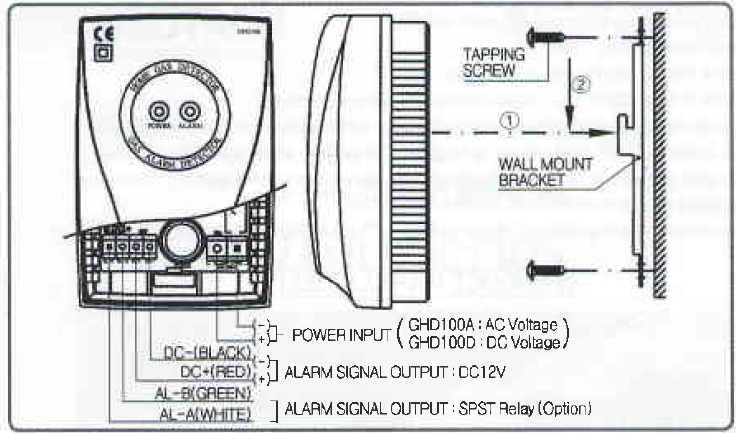

• Small and easy to install.
• Can be connected to control unit and shut off valve for automatic shutdown in the event of gas leak (With Relay model only).
• Low price. 3 years of life cycle.
• Operates with 230V AC.

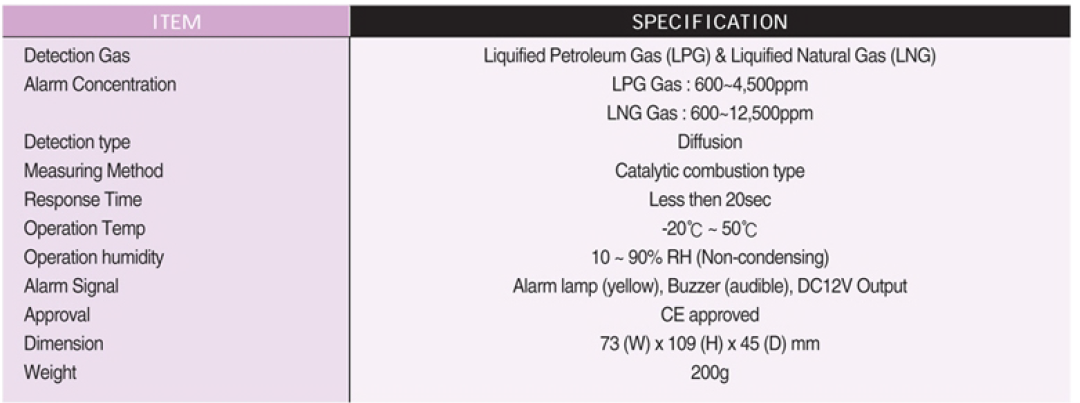

• GHD100A Specification Detection Gas: Liquified Petroleum Gas (LPG) & Liquified Natural Gas (LNG).
• Alarm Concentration: LPG Gas (600-4500ppm) & LNG Gas (600-12500ppm).
• Detection Type: Diffusion
• Measuring Method: Catalytic Combustion Type
• Response Time: <20 sec
• Operation Temperature: -20C – 50C
• Operation Humidity: 10~90%
• RH (Non-condensing)
• Alarm Signal: Lamp (Yellow), Buzzer (Audible), DC12V Output
• Approval: CE approved/ ST
