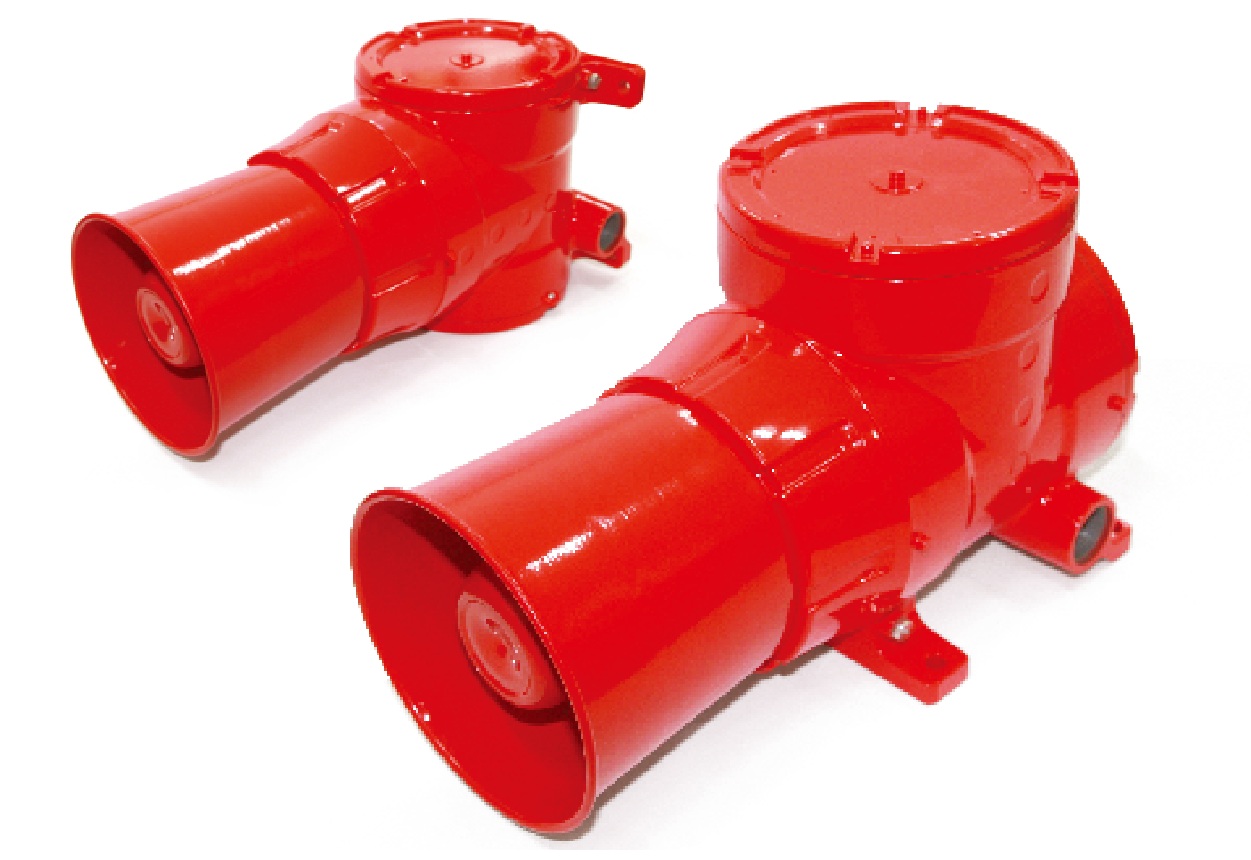

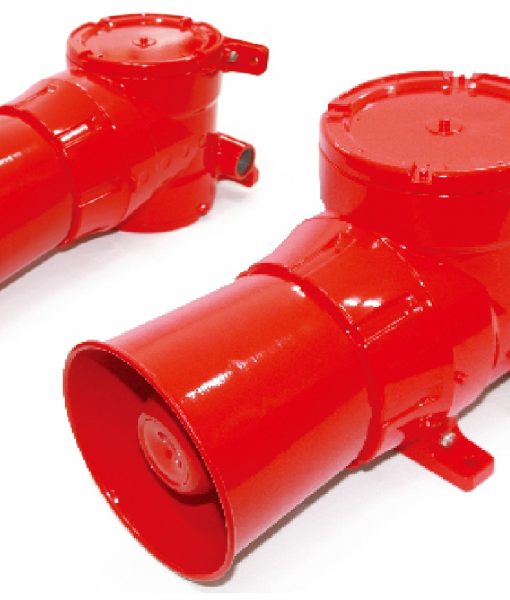

Explosion proof Sounder

Model : GTL-200B
Volume : MAX 120 dB
Approval : KCs

GTL-200B
▷ Available of sound types & volume control with internal switch
▷ Max Output : 120 dB
▷ Available in setting options depend on field condition

Specification
Product Type Signal Horn
Material Body : ALDC12
Flame arrester : SS316L
Sounder out put MAX 120 dB
Power Supply AC 110 / 220V 50~60Hz, DC 12~48V
Power Consumption AC 110V=0.174A / 220V = 0.087A MAX
DC 12V = 1.6A / DC24V=0.8A / DC48V = 0.4A MAX
Operation Humidity 0 to 95% RH (Non-condensing)
Conduct Connection 1/2″ or 3/4″ PF, NPT(3/4″ PF Standard)
Dimensions 164(W) X 161(H) X 322(D) mm
Weight App. 5kg
Approval Ex d ⅡC T4,T5,T6 (IP66)
