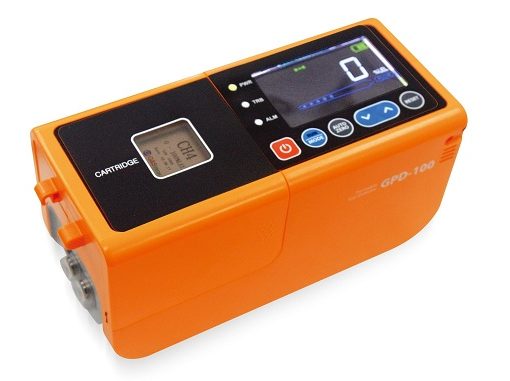

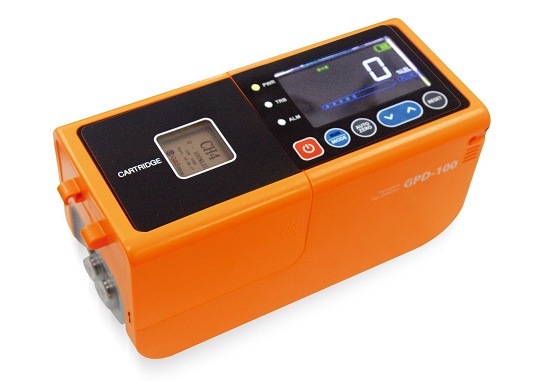

Cartridge Sensor & Sampling Portable Detector

Model : GPD-100
Gas : Combustible, Toxic, VOC, O2
Data logging with USB
Approval : CE

Information :

▷ Continuous detection of special gases in Semiconductor and ohter industrial applications.
▷ Fast response detection of gas leakage with a high efficientp ump inside

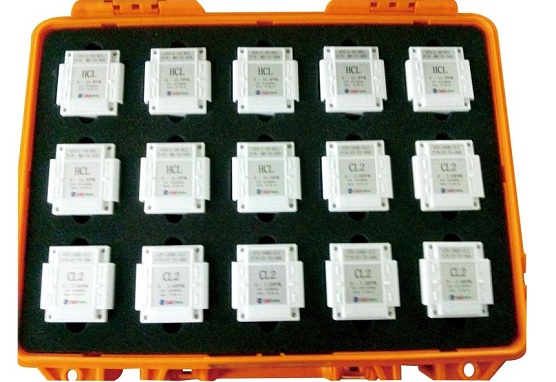

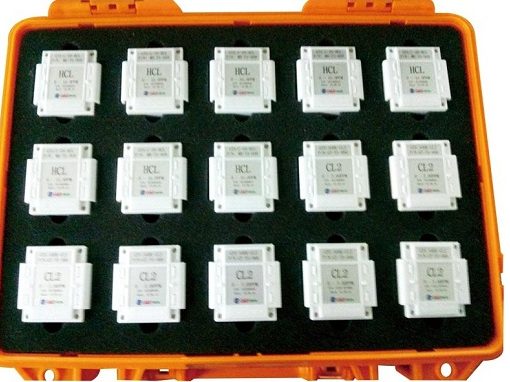

▷ Easy replacement with a cartridge type sensor (same as GTD-5000 cartridge)

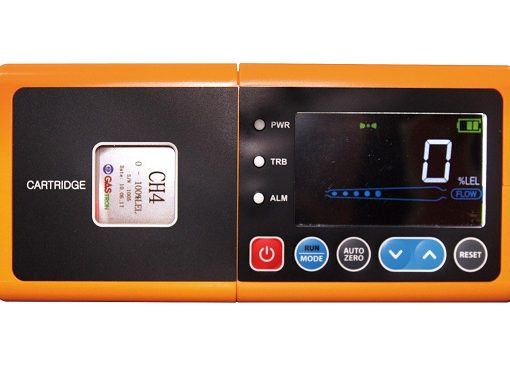

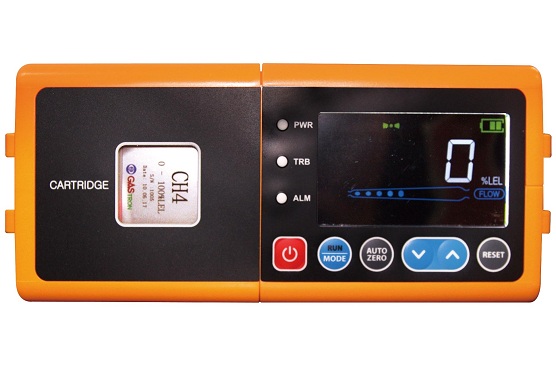

▷ Easy calibration and get information from the face displayed with backlit color LCD
▷ 10 hours continuously operation with a rechargeable Li-ion battery and charge power
with a power adapter
▷ Data logging function with Micro SD (T-flash) card (Text File) (Option)

Specification

AUTO SAMPLING & CARTRIDGE SENSOR TYPE PORTABLE GAS DETECTOR GPD-100 SERIES
Model GPD-100
Measuring gas Flammable gases                                    |                 VOC gases                 |  O2  /  Toxic gases(CO, Cl2, NH3  & etc)
Measuring type Auto Sampling type
Measuring method Catalytic cell, Hot-wire semiconductor cell  |   Photo-Ionization Detector(PID)    |  Semiconductor cell, Electrochemical cell
            Thermal  conductivity cell            |
Measruing range      0~100%LEL, 0~100%Vol                     |           5ppb ~ 300ppm                |  Refer to Toxic Gas Measuring Range
Response time Flammable gases( < 15sec / 90% scale)     | VOC gases(< 5sec / 90% scale)     |  Toxic gases( < 45sec / 90% scale)
Accuracy ±3% / Full Scale
Parameter control Front membrane key (power, calibration, maintenance, alarm setting, reset)
Operation mode display 3-LED (power, 2 colored 2-stage alarm, 1-trouble)
Measuring value display LCD Display (4-digit)
Sampling method Diaphragm Pump

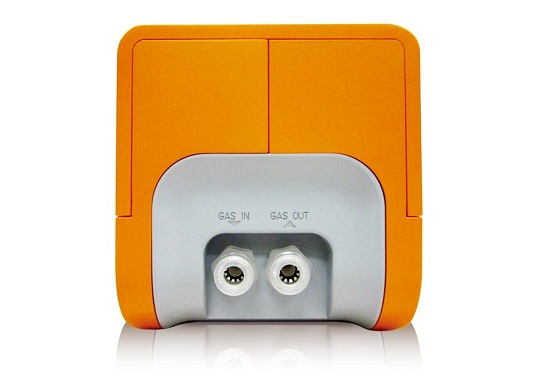

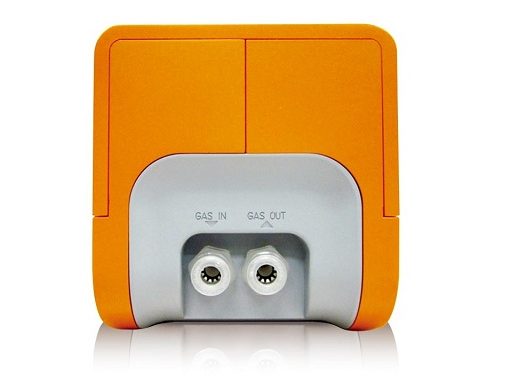

Sampling line OD 1/4″ (Standard)
Flow rate Normal 300~500 ml/min (0~1000 ml/min max)

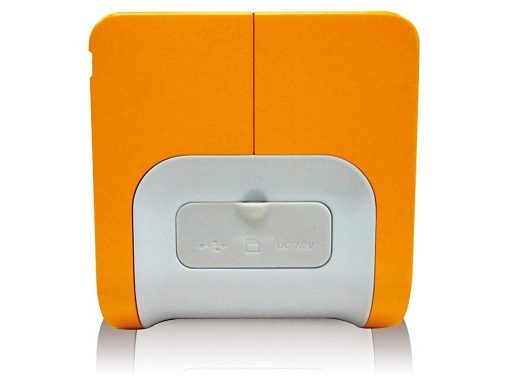

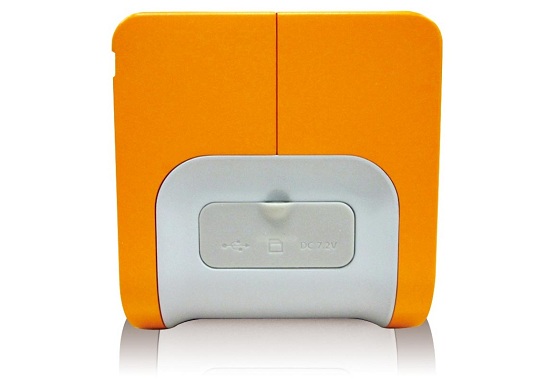

PC interace Mini USB Type B connector & window viewer
Data logging More than 10 hours data logging function with Micro SD (T-flash) card (Option) / 2G Byte max
Operating temperature -20℃ to 50 ℃
Operating humidity 5 to 99% RH (Non-condensing)
Operating power Battery : DC 7.4V / 4.4A
Input: AC 100~240V 50 / 60Hz free volt , Output :DC12V 3.5A
Material Poly carbonate
Dimensions 218 (W) × 100 (H) × 95 (D) mm
Weight 1.2kg
Approval CE (EN50270:2006)
